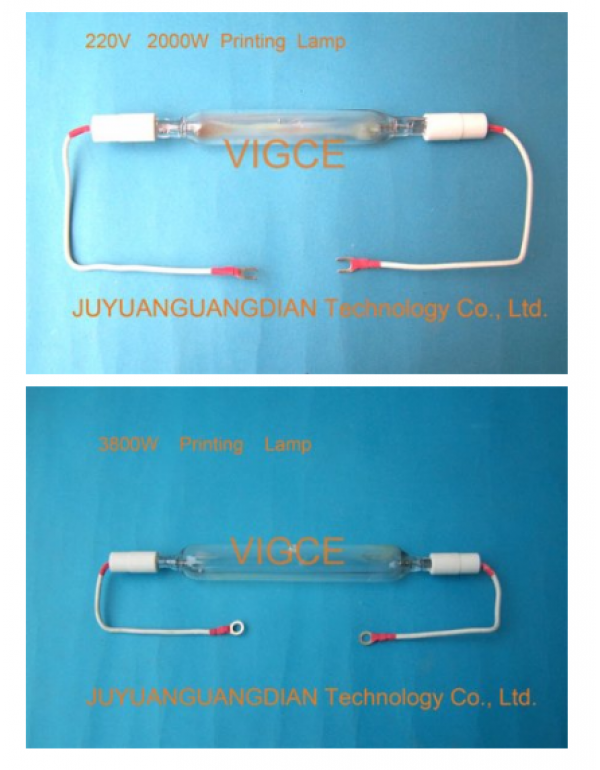

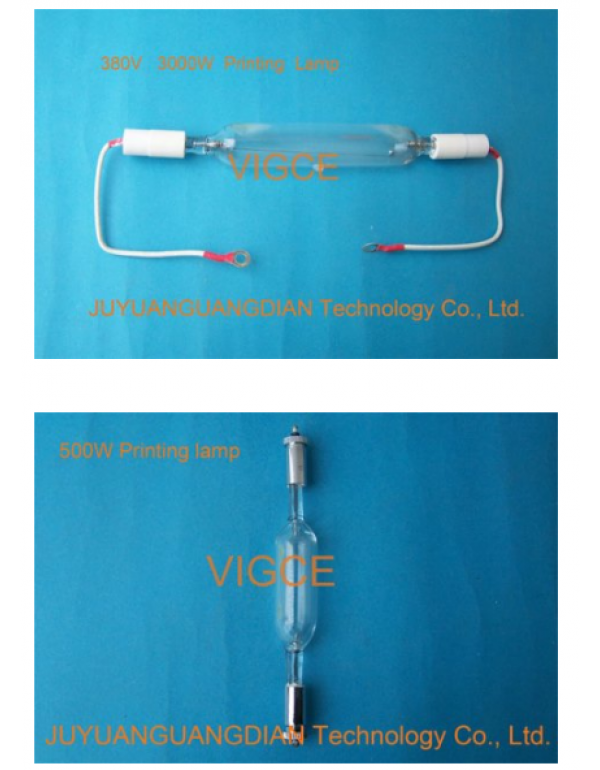

Giant source + fast start gallium iodide lamp / printing lamp / UVA + JYP
- Metal halide discharge lamp
- Printed circuit board
- Printing and printing
- Strong UV and near UV light sources

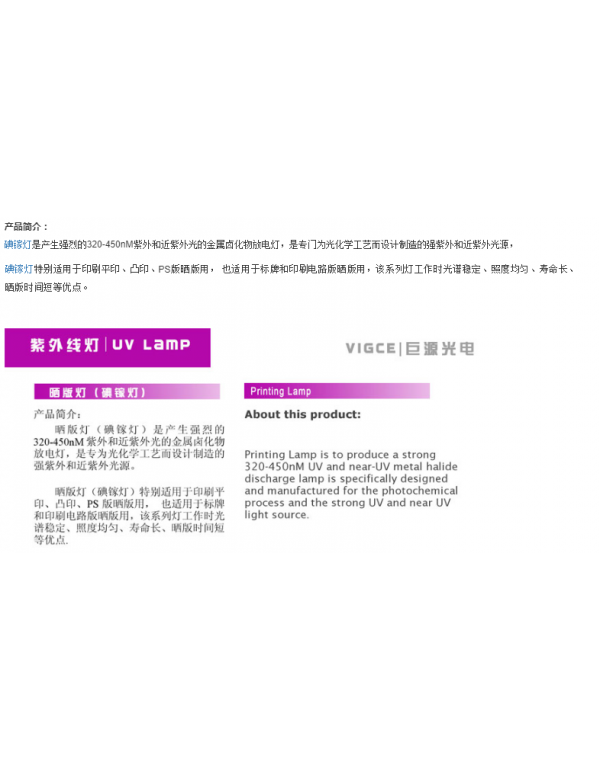

- Product Description: Gallium iodide lamp is a metal halide discharge lamp that produces strong 320-450nm ultraviolet and near ultraviolet light. It is a strong ultraviolet and near ultraviolet light source specially designed and manufactured for photochemical process. It is suitable for printing flat printing, convex printing, PS plate printing, label and printed circuit plate printing. This series of lamps have the advantages of stable working time spectrum, uniform illumination, long service life and short printing time.
- Gallium iodide lamp is a metal halide discharge lamp that produces strong 320-450nm UV and near UV light. It is a strong UV and near UV light source specially designed and manufactured for photochemical process,
- Gallium iodide lamp is especially suitable for flat printing, convex printing and PS plate printing, as well as for plate and printed circuit plate printing. This series of lamps have the advantages of stable working time spectrum, uniform illumination, long service life and short printing time.
Product Description:

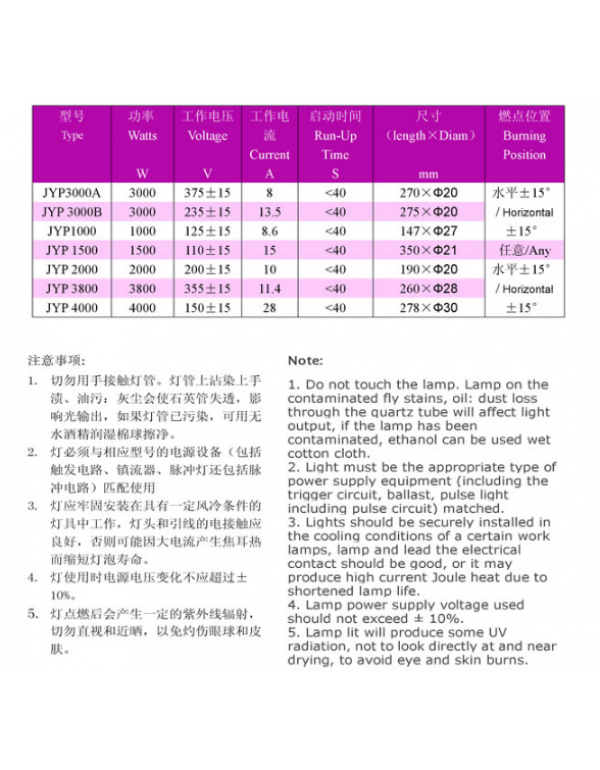

Instructions
1. Do not touch the lamp tube by hand. The lamp is stained with hand stains and oil stains: dust will make the quartz tube opaque and affect the light output. If the lamp is polluted, it can be wiped clean by wetting the cotton ball with anhydrous alcohol.
2. The lamp must be matched with the corresponding model of power supply equipment (including trigger circuit, ballast, pulse lamp and pulse circuit).
3. The lamp shall be firmly installed in the lamp with certain air cooling conditions, and the electrical contact between the lamp head and the lead wire shall be good, otherwise the lamp life may be shortened due to Joule heat generated by high current.
4. When the lamp is used, the change of power supply voltage shall not exceed ± 10%.
5. After the lamp is ignited, it will produce certain ultraviolet radiation. Do not look directly or bask in the sun, so as not to burn the eyes and skin.
