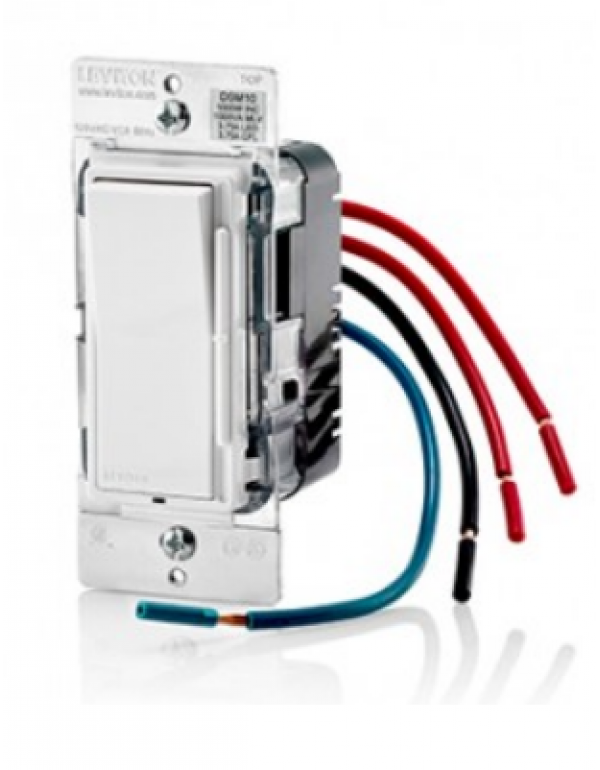

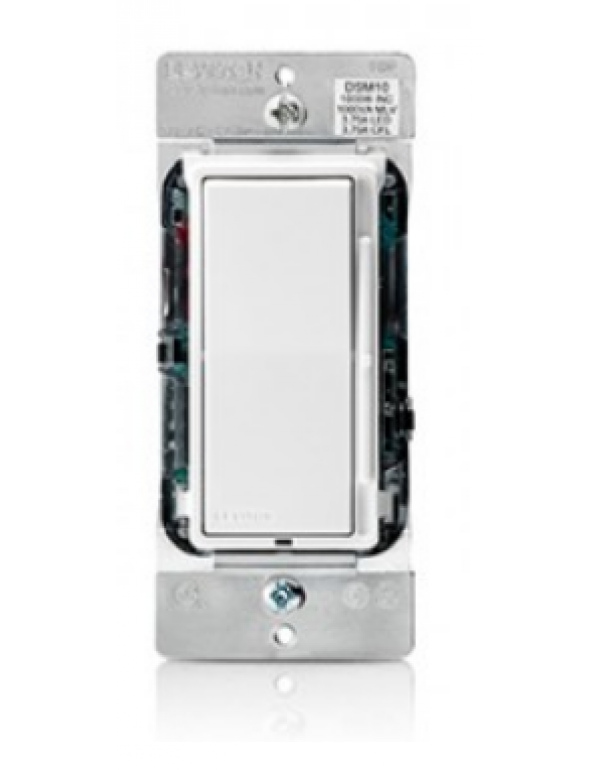

DSM10-1LZ - Decora Rocker-Slide Dimmer
LED • CFL • Incandescent • Halogen • Magnetic Low Voltage
This dimmer combines a Decora rocker switch with a contemporary full-range slender slide bar for precise lighting control. With a new, streamlined style, Decora dimmers and fan speed control complement any interior design and are compatible with other Decora devices.
The dimmer ships with Ivory colored rocker switch and slide, but color change kits for White and Light Almond are also included.
The wallplate / faceplates must be ordered sparately to match the color of the rocker and slide you have chosen.
See Related Products on this page for the faceplate items.
Dimmer Features:
Incandescent and Halogen Dimming: 1000W max. 120VAC
LED and CFL Dimming: 450W max. 120VAC
Magnetic Low Volt Dimming: 1000VA max. 120VAC
60Hz
Single Pole or 3-Way
New aesthetically pleasing design with rocker switch and slender dimmer control slide bar
Includes Ivory, White and Light Almond rocker and slide color kits
Integrated linear full-range slide control for easy, precise operation
Controls a variety of dimmable LED and CFL lamps
Compatible with Magnetic Low Voltage loads, Incandescent and Halogen lamps
Single pole or 3-way operation (when using 3-way switch); packaged with White, Ivory, and Light Almond color change kits
Additional color change kits available in Black, Brown, Red and Gray
Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
The slide bar location preserves the selected brightness level when the dimmer is switched OFF
Microprocessor control offers flexibility to program LEDs and CFLs for best performance
Switch under the color change kit to turn locator light ON/OFF
No fins for multi-gang installation
Wired using leads, a Neutral wire is not required for operation
Built-in radio/TV interference filter
Volts | 120 |
---|---|
Available In Case Of | 10 |
Load Type | LED / Incand |
Manufacturer Warranty | 5 Years |
Topbulb Order Code | DSM10-1LZ |
---|---|
Manufacturer's Description | ROCKER/SLIDE UNI DIMMER |
