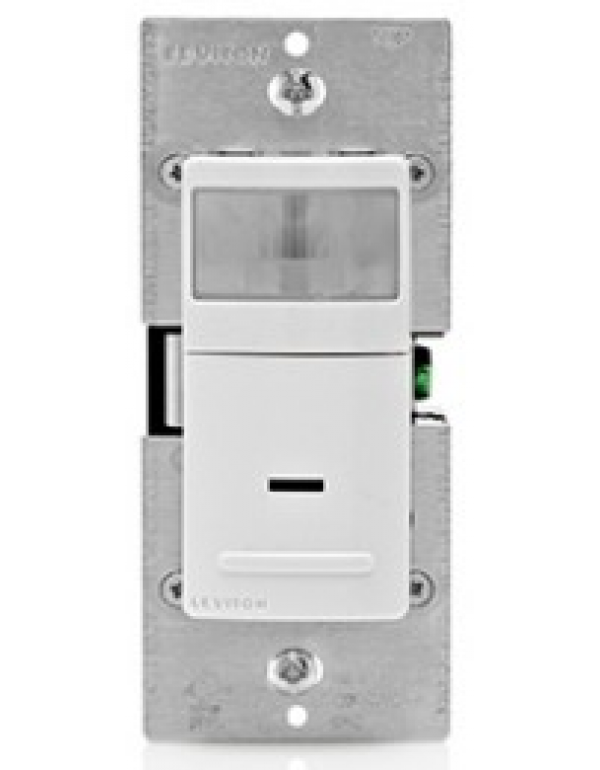

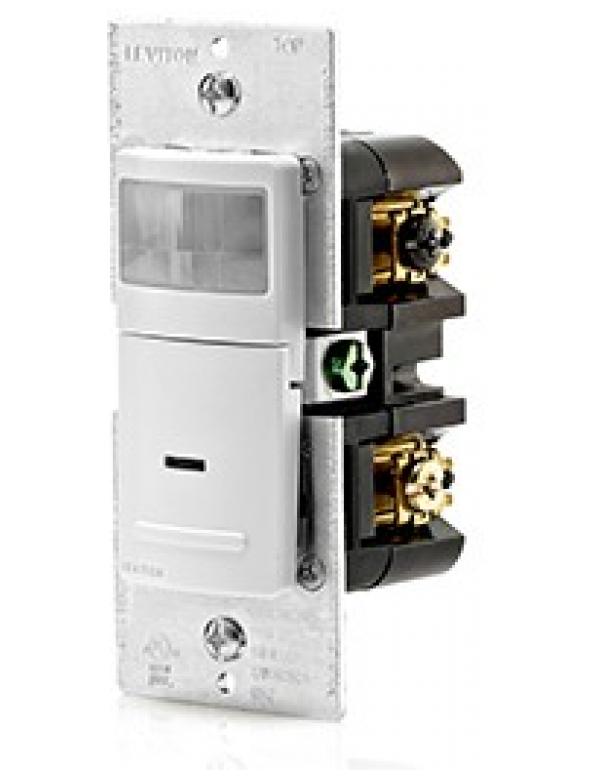

IPV05-1LZ | Vacancy Sensor - Wall Mount - Passive IR

900 Sq. Ft. Coverage • Incandescent, LED, CFL • Manual ON / Auto OFF

IPV05-1LZ Description

• The IPV05-1LZ is single pole, relay-based and designed to replace a single pole switch for loads such as LED, CFL, Incandescent, Fluorescent lighting and motor loads.
• California Title 20 compliant.
• The IPV05-1LZ has screw terminals for easy installation and does not require a neutral wire for connection. It features a time delay setting which allows users the option to delay the lights/motor load from switching off for 30 seconds, 5 minutes, 15 minutes or 30 minutes.
• White finish assembled on the device. Ivory and light almond color change kit included.

IPV05-1LZ Features

• Switch Type: Single-Pole
• Control: Manual ON, Auto OFF
• Adjustment: Manual
• Pattern Degrees: 180
• Coverage (Sq.Ft.): 900 Sq. Ft.
• Time Adjustment: 30s-30m
• Load Rating: 600W Incandescent, 150W LED and CFL
• Voltage: 120 Volt AC 60 Hz
• Neutral: Not Required
• Standards and Certifications: CUL/US
• Color: White, Ivory, Light Almond (color change kit included)
• Mounting: Fits in standard wallbox and replaces single-pole wall switch
• Compliance: California Title 20
• Warranty: 5-Year Limited

• Available In Case Of	4

  ---

  Topbulb Order Code	IPV05-1LZ
  Manufacturer's Description	IPV05-1LZ
  MPN	75707
  UPC	078477570722
